Description

Technical Parameters

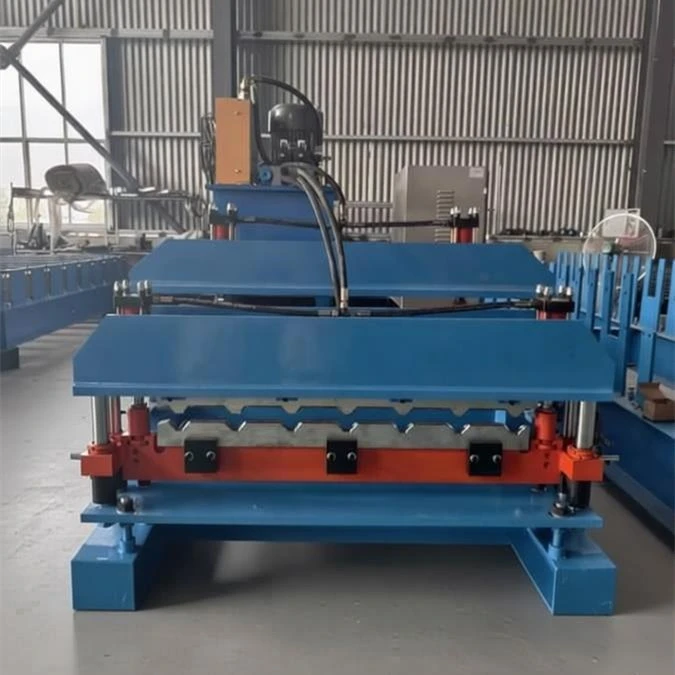

The Roof Panel Crimping Machine is a piece of equipment capable of simultaneously producing two distinct panel profiles: flat panels and arched panels. By integrating these two processes into a single unit, it is ideally suited for projects involving color-coated steel structures-specifically for the construction of factory buildings, warehouses, greenhouses, and arched roofs-thereby enabling automated operation and comprehensively enhancing production efficiency.

Specifications

Item	Content	Remarks
Material	Galvanized color plate
Width	1000mm-1250mm	Customized special sizes available
Thickness	0.3mm-0.6mm
Color Matching	Green vertical grain	Can also be customized according to customer requirements
Overall Dimensions (approx.)	7000mm×1600mm×1500mm
Forming Rows	13 rows
Forming Roller	Precision machined 45# steel, surface hardened chrome-plated and polished
Forming Roller Shaft	Diameter 70mm, precision machined 45# steel
Wall Panels on Both Sides	16mm
Frame Specification	300H steel
Motor Power	Hydraulic transmission 5.5KW	Voltage can be customized 380/220/240
Transmission Mode	Chain	1 inch
Forming Speed	8/12m/min
Cutting Mode	Hydraulic forming then cutting, hydraulic guide cutting
Cutter Material	Cr12 heat treatment	Thickened, high wear-resistant cutter plate
Electronic Control System	Including PLC, touch screen, coding counter	Fully automatic batch setting

2001

Product Advantages

High Efficiency

Automated production system supports speeds of up to 10–30 m/mint, significantly lowering labor costs.

Customizable

Before leaving the factory, the machine supports customization of sheet width and thickness-ranging from 0.3 to 0.8 mm-according to project requirements, eliminating the need for further processing.

Durable Construction

Robust build quality reduces downtime and maintenance expenses, Designed for 24/7 continuous operation with reduced maintenance requirements and long service life.

Easy Operation

Equipped with a simple PLC control system, most operators can complete basic training within 1–2 hours, thereby reducing equipment commissioning time.

Applications

Villa and Residential Roofing Projects
Canopy Design and Construction
Custom Roof Tile Production for Building Material Manufacturers
Steel Structure Workshop Installation

FAQ

Q: What are the advantages of using a roof panel crimping machine compared to traditional tile manufacturing?

A: The Roof Panel Crimping Machine produces metal roofing tiles that replicate the look of traditional glazed tiles but are much lighter, corrosion‑resistant, and durable. The automated process reduces labor and material costs, speeds up production, and allows for easy customization, making it far more economical for modern construction projects.

Q: How should the machine be maintained after installation?

A: Regular maintenance is simple: check the rollers for wear, lubricate moving parts monthly, and ensure all electrical connections are secure. We recommend a thorough inspection every six months. If you change the tile profile, recalibrate the roller gap and cutting position according to the new specifications. This routine care will keep the machine running efficiently and extend its service life.
